HOME >> PRODUCTS >>SMK >>Plugs/Jacks >>Mini Jacks >> SMK small socket jk-35 series lgs2318-0100f
Product Detail

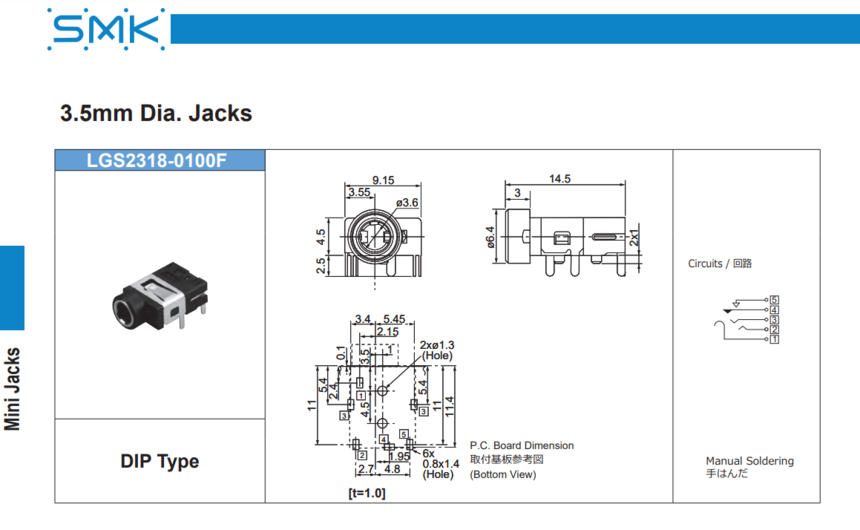

SMK small socket jk-35 series lgs2318-0100f

Telephone contact
0065-90386025
access
Inquiry
Collect
  • Description
  • Commodity parameters


SeriesJK-35
Product Name3.5mm Dia. Mini Jack
Parts No.LGS2318-0100F
Outline・Feature

  • 1. A small ø3.5mm jack that was developed for small, mobile equipment.

  • 2. Country of Origin：China

ApplicationSmart phones, mobile phones, tablet PCs, portable audio,other small AV equipment.
Standard－
External DimensionWidth: 14.5 mm　Depth: 9.15 mm　Height: 4.5 mm
PackagingBulk
Applicable Plug Diameter3.5mm
Number of Pins3
Mounting MethodDIP
Terminal Shapesoldering
Rating1A, 12V DC
Contact Resistance30mΩ Max.
Insulation ResistanceDC500V 100MΩ Min.
Withstanding VoltageAC500V (for one minute)
Operating Temperature Range－40℃ ～ ＋85℃
HousingTｈermoplastic Resin
Sleeve SpringCu Alloy
Tip SpringCu Alloy
Mounting MethodDIP
Switchwith
Recommended LayoutManual Soldering
