MultiMag

MultiMag connectors are designed for small and compact applications in tight spaces. Available designs include: MultiMag 6 for e.g. USB and MultiMag 15 for general power and data transmission.

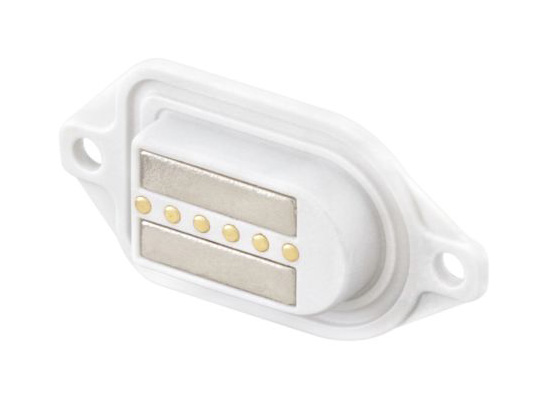

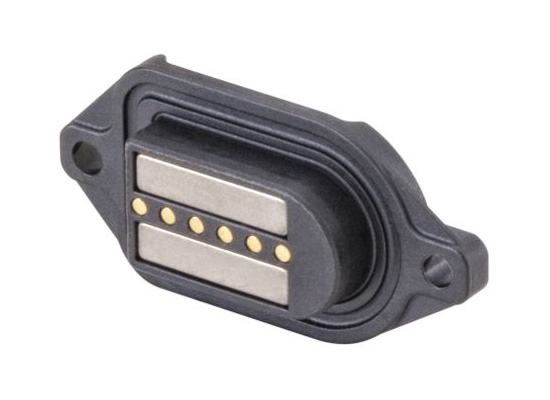

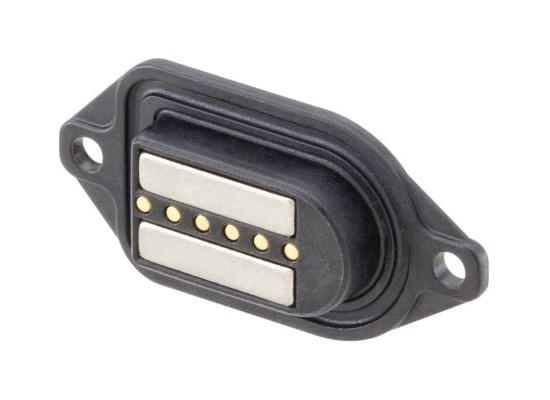

MultiMag 6

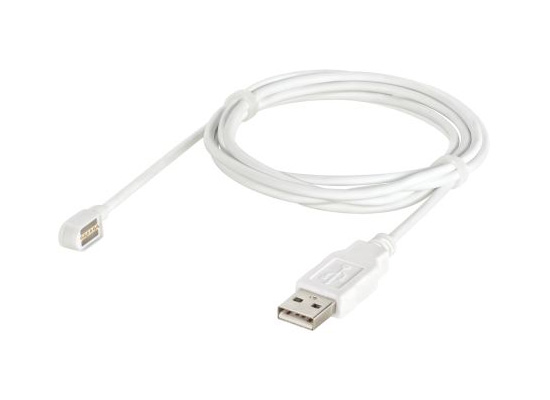

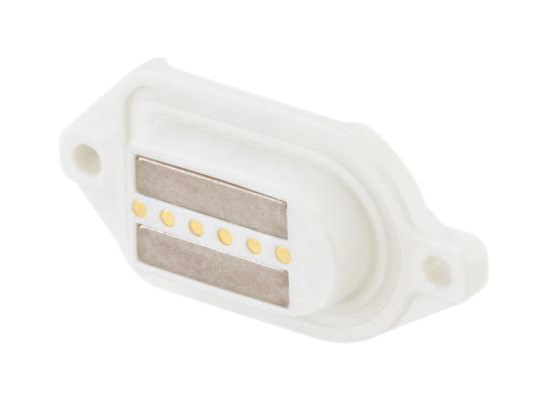

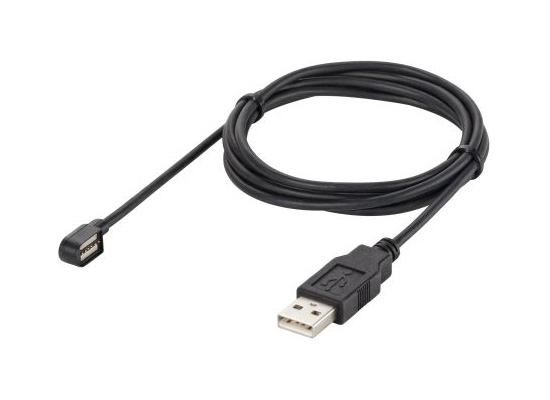

MultiMag 6 connectors are designed for small and compact applications where space is limited, such as smart watches/data glasses.

Properties

• Handy, compact connector

• Suitable for small devices thanks to compact installation dimensions

• Data transfer in accordance with USB 2.0 standard

• Suitable for frequent connection and disconnection

M9K701-299L	M9K702-299L	M9K703-299L	M9K701-400L
M9K702-400L	L99-029-1500	L99-A0039-1500

MultiMag 15

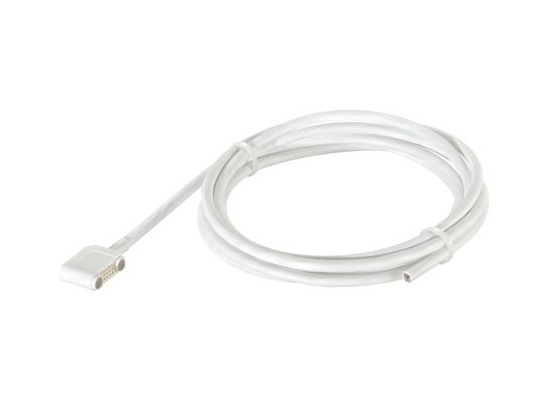

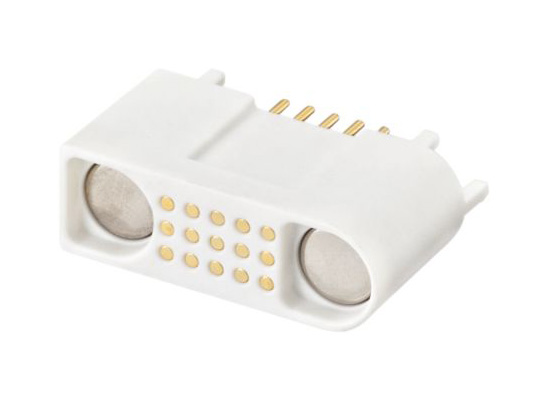

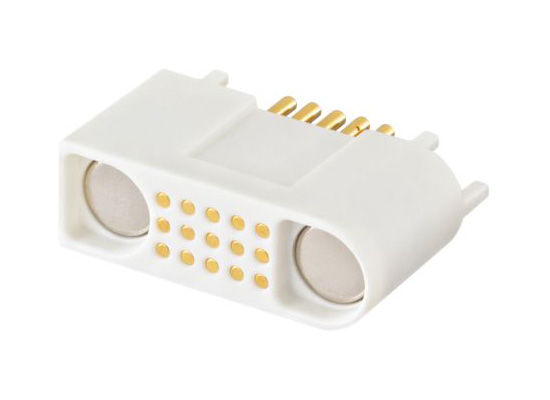

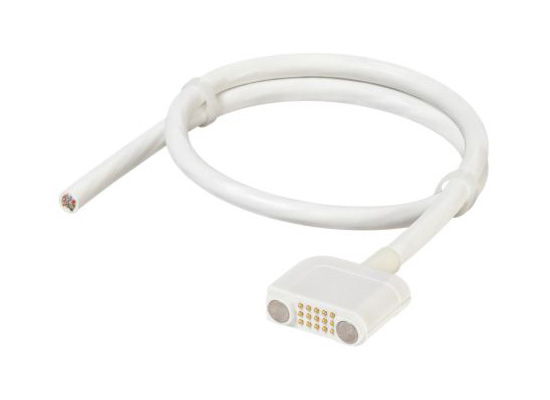

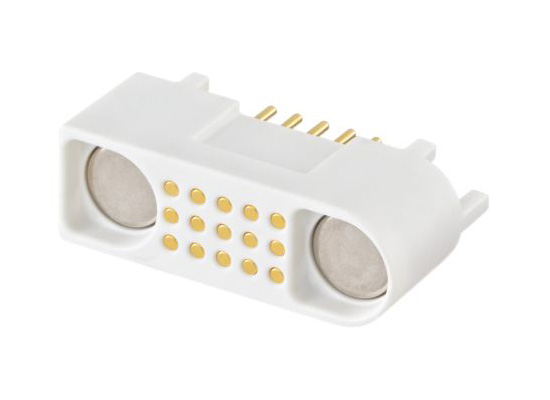

MultiMag 15 is a hybrid connector with 15 contacts which can transmit the supply voltage and current, Gigabit Ethernet and several control signals at the same time. MultiMag connectors are designed for small and compact applications where space is limited.

Properties

• Customer-specific pin assignments possible

• Suitable for frequent connection and disconnection

M9K115-400L	M9K103-400L	M9K102-199L
L99-345-3000	L99-346-3000
