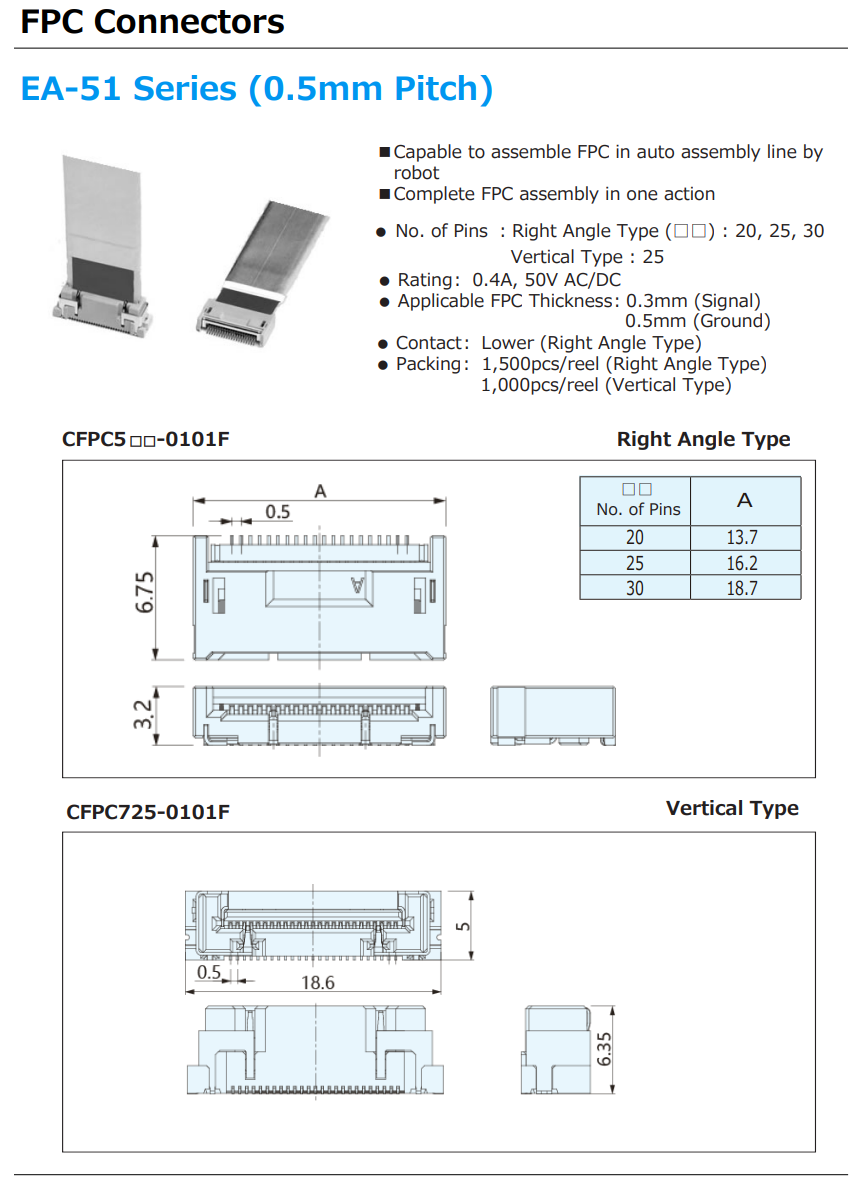

EA-51　Series 0.5mm Pitch One Action FPC / FFC Connector

1. One action FPC/FFC lock system suitable for robotic assembly contributes to automation of the manufacturing process.
2. Able to check the condition of FPC/FFC insertion through windows at the top of the connector. (Right angle type only)
3. Since the lever is made of SUS with high rigidity, when the FPC/FFC is pulled out by force, even if the FPC/FFC is broken, the connector itself will not be deformed or broken.
4. Compatible with FPC, FFC, and shielded FPC.
(Applicable thickness: Signal 0.3mm / Ground 0.5mm)
5. Pin count：Right Angle Type 20, 25, 30, Vertical Type 25.
6. Country of Origin：China

Pitch：	0.5mm
Contact：	Right angle type：Lower Contact, Vertical type：One-sided
Number of Pins：	Right angle type：20,25,30, Vertical type：25
Mounting Height：	Right angle type：3.2mm, Vertical type：6.35mm
Applicable FPC Thickness：	Signal：0.3mm, Ground：0.5mm
Rating：	AC/DC 50V 0.4A
FPC Connection：	Non-ZIF
Contact Resistance：	40mΩ max.
Insulation Resistance：	50MΩ min. at 500V DC
Withstanding Voltage：	500V AC (for one minute）
Operating Temperature Range：	－20℃～＋80℃

Collect

Parts No.	Number of Pins	Contact	Mounting Direction	Mounting Method	Mounting Height	Hold Down


CFPC520-0101F	20	Lower Contact	Right Angle	SMT	3.2	without
CFPC525-0101F	25	Lower Contact	Right Angle	SMT	3.2	without
CFPC530-0101F	30	Lower Contact	Right Angle	SMT	3.2	without
CFPC725-0101F	25	One-sided	Stright	SMT	6.35	without
