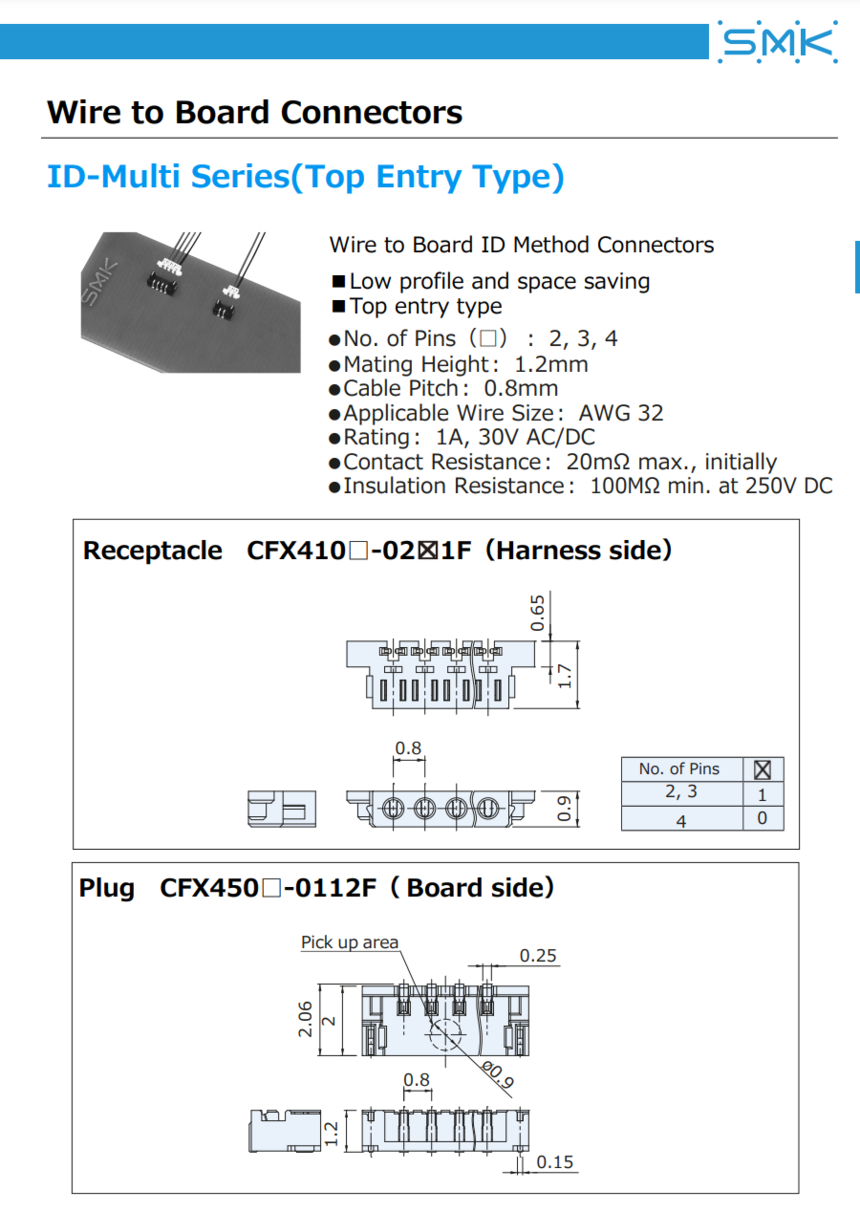

ID-Multi(Top Entry Type) Series Wire to Board ID Method Connectors

Features

  • 1. Small and low profile type wire to board ID method connector of 0.8mm pitch and 1.2mm mating height.

  • 2. Due to original contact design, supports multiple pin connections.

  • 3. Resistant to vibration and shocks when dropped and highly reliable due to a 2point contact structure.

  • 4. Cable connection helping to achieve excellent cable retention performance and contact reliability due to double insulation displacement slots at the front and back.

  • 5. A top entry mating structure where the wire emerges horizontally.

  • 6. Excellent mating retention force in addition to ensured clicking feeling during insertion and withdrawal due to the mold locking structure.

  • 7. Supplied in the embossed taping with automatic mounter.

  • 8. Country of Origin:Japan, China

Specification

Pitch:0.8mm
Number of Pins:2,3,4
Rating:AC/DC 30V 1A
Method for Connection:Insulation displacement
Applicable Electrical Wire:AWG32
Connection Form:2piece
Contact Resistance:20m Ω max., initially
Insulation Resistance:100M Ω min.at 250V DC
Withstanding Voltage:250V AC (for one minute)
Operating Temperature Range:-25℃~+80℃

Material and Plating

Housing:Thermoplastic Resin
Contact:Cu Alloy, Au Plating
Hold Down:Cu Alloy, Sn Plating
Terminal:Cu Alloy, Au Plating

Application

  1. Mobile phones, smartphones, digital cameras, PDAs, and other mobile equipment.


Telephone contact
0065-90386025
access
Collect
  • Description
  • Commodity parameters


Parts No.Plug/Socket/TerminalNumber of PinsMounting DirectionMounting Method

CFX4102-0211FReceptacle -
CFX4103-0211FReceptacle -
CFX4104-0201FReceptacle -
CFX4502-0112FPlug - SMT
CFX4503-0112FPlug - SMT
CFX4504-0112FPlug - SMT
