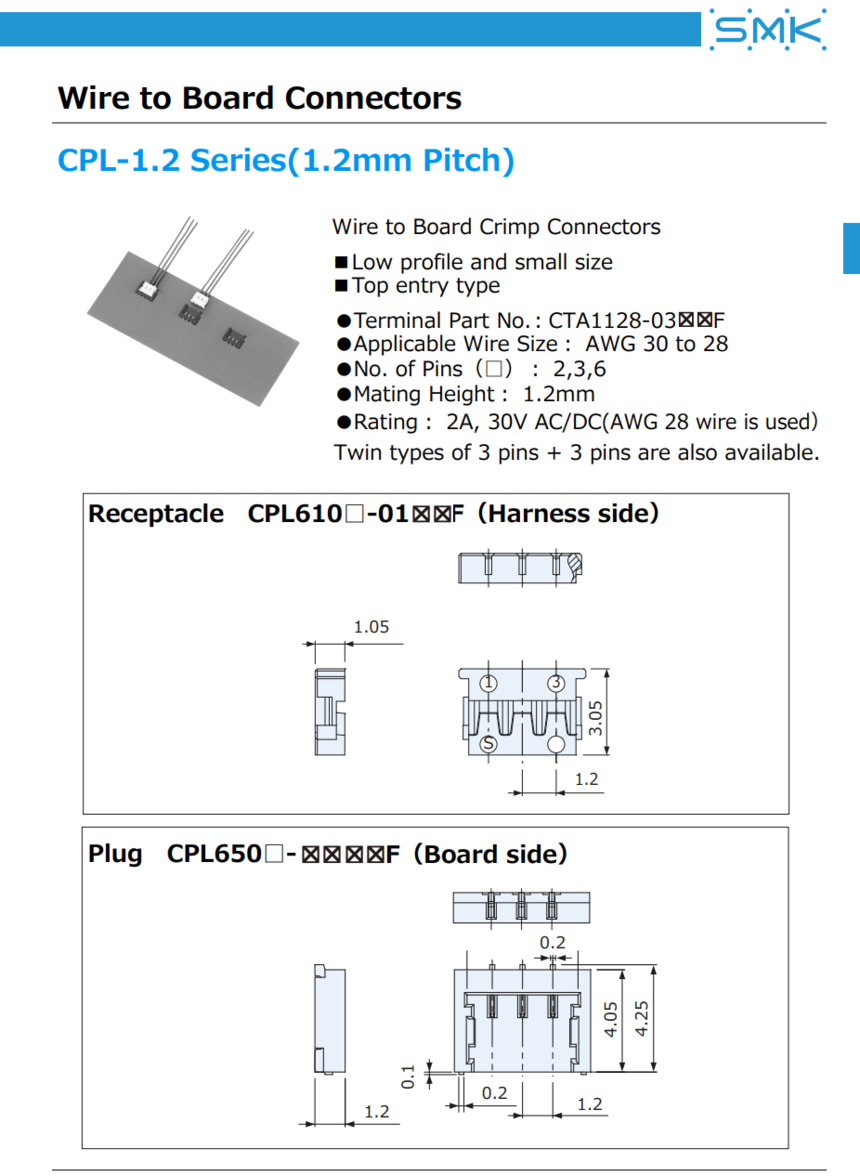

CPL-1.2　Series 1.2mm Pitch Wire to Board Crimping Connector

Features

  • 1. A low profile design wire to board crimping connector with 1.2mm mating height, contribute to downsizing equipment.

  • 2. A top entry mating structure where the wire emerges horizontally.

  • 3. Structure of holding both sides of the plug contact, the stable contact performance against vibrations, tilting uses and fretting is ensured.

  • 4. Easy but ensured terminal insertion is due to a housing lance structure.


  • 5. Country of Origin：Please contact us.

Specification

Pitch：1.2mm
Number of Pins：2, 3, 6
Rating：AC/DC 30V 2A　(AWG28を使用時)
Method for Connection：Crimp
Applicable Electrical Wire：AWG28～30
Connection Form：2piece
Contact Resistance：20m Ω max., initially,
Insulation Resistance：1000MΩ min.at 500V DC
Withstanding Voltage：500V AC (for one minute)
Operating Temperature Range：－25℃ ～ ＋ 85℃

Material and Plating

Housing：Thermoplastic Resin, Black
Contact：Cu Alloy, Au Plating
Hold Down：Cu Alloy, Sn Plating
Terminal：Cu Alloy, Au Plating

Application

  1. Notebook PCs, mobile phones, and other small mobile equipment, etc.


Telephone contact
0065-90386025
access
Inquiry
Collect
  • Description
  • Commodity parameters


Parts No.Plug/Socket/TerminalNumber of PinsMounting DirectionMounting Method

CPL6102-0110FReceptacle 2 － －
CPL6103-0101FReceptacle 3 － －
CPL6106-0101FReceptacle 6 － －
CPL6502-0101FPlug 2 Right angle SMT
CPL6503-0101FPlug 3 Right angle SMT
CPL6506-0101FPlug 6 Right angle SMT
CTA1128-0351FTerminal 1 － －
